Your CNC Machine Shop
RCT MFG has many years of experience in CNC machining and fabrication services. We have a wide range of CNC machines that offer high precision, amazing flexibility, and great output for almost any machining project. Not only do we have different machines, but we also have a team of experts who are dedicated to providing you with first-class service. We assure you that no matter the size of the job, our professionals will treat it like their own. We can also provide prototype CNC machining services to help you get a clear picture of the final product.
For complex and precise custom machine parts, it is essential to find a reliable metal fabrication shop that offers comprehensive CNC milling and turning services. Save yourself the hassle of coordinating between different shops to complete your project. RCT MFG is your one-stop solution, offering a full range of CNC milling and turning capabilities. No matter its complexity, we can handle your custom CNC machining project from start to finish.
Precision CNC Machining Capabilities

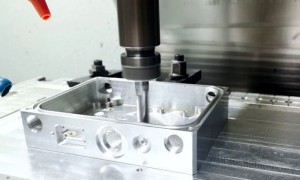

CNC Milling
CNC milling removes materials from the workpiece to create custom-designed parts with flat surfaces using cutting tools or multi-point milling cutters. With our 3-axis, 4-axis, and 5-axis CNC milling services, you can get milled parts with tight tolerance up to 0.001mm. Both continuous 5-axis machining and indexed 5-axis machining services are provided by us.

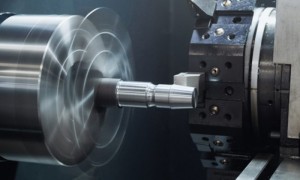

CNC Turning
CNC turning is a precision machining process that efficiently removes material from the exterior of a cylindrical rod by utilizing a rapidly spinning cutting tool. CNC lathes are highly versatile machines known for their exceptional repeatability, making them exceptionally well-suited for wide applications, including rapid prototyping and both low and high-volume production.

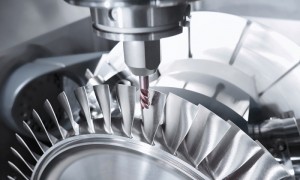

5-Axis CNC Machining Services
Our 5-Axis CNC machining services allow us to produce complex parts with high precision. This technology enables machining from multiple surfaces and angles in one operation, reducing the need for tool changes and set-up times. As a result, we can achieve tighter tolerances and faster turnarounds.
Precision CNC Machining Tolerance
| Standards | CNC Milling | CNC Turning | |
| Maximum Part Size | 4000×1500×600 mm | 200×500 mm | |
| Minimum Part Size | 4×4 mm | 2×2 mm | |
| Minimum Feature Size | Φ 0.50 mm | Φ 0.50 mm | |
| Standard Tolerances | Metals: ISO 2768-m | Metals: ISO 2768-m | |
| Plastics: ISO 2768-m | Plastics: ISO 2768-m | ||
| Linear Dimension | +/- 0.025 mm | +/- 0.025 mm | |
| Hole Diameters(Not Reamed) | +/- 0.025 mm | +/- 0.025 mm | |
| Shaft Diameters | +/- 0.025 mm | +/- 0.025 mm | |
| Edge Condition | Sharp corner will be removed in the form of a chamfer or radius. The size of the chamfer, or resulting radii, must be indicated on the drawing. | ||
| Threads and Tapped Holes | Diameter: Φ 1.5-5 mm, depth: 3×diameter | Diameter: Φ 1.5-5 mm, depth: 3×diameter | |
| Diameter: Φ 5 mm or more, depth: 4-6×diameter | Diameter: Φ 5 mm or more, depth: 4-6×diameter | ||
| ECOREPRAP can produce threads of any specification and size required by our customers. | |||
| Text | Use CNC engraving or laser carving to create standard text based on customers’ requirements. Minimum width of 0.5mm, depth of 0.1mm. | Use laser marking to create standard text for CNC turned parts. | |
| Lead Time | 3 to 10 business days | 3 to 10 business days | |
How can we help you today?
At RCT MFG, we are committed to supporting your project from the initial design phase through prototyping and full production. Our team is dedicated to providing top-quality custom CNC parts that are carefully crafted to meet your specifications. Our CNC machine shop has a proven track record of delivering on time and within budget to ensure your project is a success.
Let us be your partner in bringing your concepts to life with our proven custom machining services. Our seamless custom CNC machining process guarantees satisfaction every step of the way. Discuss your project with a CNC Design Consultant.
Ready to Get a CNC Machining Quote?
What is CNC Machining?
CNC, or computer numerical control machining, is a widely used manufacturing process that uses automated, high-speed cutting tools to form designs from metal or plastic stock. Standard CNC machines include 3-axis, 4-axis, and 5-axis milling machines, lathes, and routers. Machines may vary in how CNC parts are cut—the workpiece may remain in place while the tool moves, the tool may remain in place while the workpiece is rotated and moved, or both the cutting tool and workpiece may move together.
Skilled machinists operate a CNC machine by programming tool paths based on the geometry of the final machined parts. The part geometry information is provided by a CAD (computer-aided design) model. CNC machines can cut almost any metal alloy and rigid plastic with high precision and repeatability, making custom machined parts suitable for nearly every industry, including aerospace, medical, robotics, electronics, and industrial. RCT MFG provides CNC services and offers custom CNC quotes on over 40 materials ranging from commodity aluminum and acetal to advanced titanium and engineered plastics like PEEK and Teflon.
Materials
Metal
- Aluminum
- Titanium
- Copper
- Brass
- Steel Alloy
- Low Carbon Steel
- Tool Steel
- Inconel
- Invar
- Bronze
- Kovar
- Cast Iron Zinc
Plastic
- Peek
- PVC
- Teflon
- Nylon
- Acrylic
Precision CNC Machining Finishes
As Machined
Components as provided as cut, no additional therapy applied. Sharp edges are damaged and deburred for risk-free handling. For any type of crucial sides that need to be left sharp, please note and specify them in your drawings. For metals, as machined can be Ra 1.6 or Ra 3.2. For plastics, as machined usually refers to Ra 3.2.
Anodizing
Anodizing enhances aluminum parts' rust resistance, boosting wear resistance and firmness, and safeguarding the metal surface. Type II and Type III are both available. For Type II, it can be in different colors, clear, black, red, and gold are most usual. Type III layer is thicker and is better put on resistant and deteriorating immune.
Spray Coating
Spray coating normally includes the application of spray painting, powder coating, and Teflon coating for different covering materials and technologies. Spray painting and powder finish can have rich shades like black, white, red, and others. For powder coating, it can be glossy and matte. For spray painting, it can be shiny, matte, textured, metal.
Metal Plating
Electroplating is a surface treatment procedure that can enhance the deterioration resistance, hardness, conductivity, attachment, and decoration of sheet metal components. We offer vast layering options, gold plating, silver plating, zinc plating, copper plating, nickel plating, and chrome plating.
Mechanical Finishes
Mechanical finishing is a process that involves generation of different-looking surface textures on metal by brushing, tumbling, or bead blasting the surface. Its benefits lie in the aesthetic appeal and is also a great choice for covering and blending any imperfections or unwanted lines and marks that might appear as a result of the manufacturing process.
Part Marking
Part marking is an economical way to add logos or custom-made text to your layouts and is frequently used for custom components. Laser engraving and silk screening are 2 cost-effective techniques that permit better versatility with your design. They are an excellent alternative for logos and lettering that are tough to create with manufacturing alone.
Heat Treatment
Heat treatment is a material processing technique that involves heating and cooling materials to adjust their properties, including hardness, strength, toughness and more, to meet specific engineering or manufacturing requirements. Spring steel 65Mn must undergo heat treatment to acquire elasticity. S7 harnness can be increased by heat treatment.
Chemical Finishes
Chemical finishing includes chromate conversion gold, chromate conversion clear, passivation, black oxide, adodine, electropolishing. Chemical finishing can remove blemishes from a part, alter its conductivity levels, extend its lifespan, and even increase its resistance to wear and corrosion of the sheet metal fabrication parts.
Wide Variety of Industries Served
A variety of industries and applications rely on CNC machining for the manufacturing of critical parts and components. Whether it’s the siding for a plane or a massive part designed to be installed in a tractor, CNC-machined parts are a critical part of:
1. The automotive industry (automobile frames)
2. The aerospace industry (airplane engine components)
3. The construction industry (building components)
4. The agriculture industry (hand tools, garden tools)
5. The medical industry (medical devices, surgical equipment)
Benefits of Our CNC Machine Shop
We offer CNC machining services for the fabrication of high-precision, high-accuracy products. We can also achieve cost-effective manufacturing on one-off and medium-volume production runs.
Our 40,000-foot facility houses an expansive fleet of available machines, so we are well-equipped to handle all your CNC machining and manufacturing needs, including rush jobs at an additional cost. Our equipment is vertically integrated and our value-added capabilities go well beyond machining, with a range of services from cutting to painting and powder coating.
Our machining and manufacturing capabilities and tooling, along with ISO 9001:2015 and AS 9001 certifications, render us the ideal choice for virtually any CNC machining need. Please don’t hesitate to contact us for assistance and a quote for upcoming projects.
Added Benefits Include
Design for Manufacturing (DFM)
We employ DFM strategies to create custom CNC machining products that are easier and more cost-effective to manufacture. By optimizing the design process, we minimize manufacturability issues, enabling faster production with commonly available tools, which in turn reduces costs.
Uncompromising Quality
At RCT MFG’s CNC machining shop, quality is paramount. We strive to deliver high-quality components while maintaining exceptional efficiency and precision. Our commitment to excellence means we not only meet but often surpass our clients’ expectations.
Comprehensive Outsourced Services
Our network includes a wide range of trusted and thoroughly vetted metal platers and finishers, both locally and nationwide. We recognize that the journey to perfection doesn’t end with metal CNC machining; a flawless finish is crucial to the final product.
RCT MFG is equipped to handle custom CNC machining projects of all sizes, from small, low-volume orders to large-scale production runs. We possess the necessary resources and expertise to deliver your parts on schedule and within budget, ensuring your project’s success.
Contact RCT MFG for CNC Machining Services
At RCT MFG, we strive to ensure our customers receive the highest quality precision parts. Our state-of-the-art facility is ISO 9001:2015 certified and equipped with state-of-the-art machining equipment. With over 15 years of industry experience, we specialize in producing small and complex components for a variety of industries including aerospace, automotive, industrial, and more. Contact us to learn more about our CNC services or request a quote to get started on your custom project.
